Adding elevation to the driving line

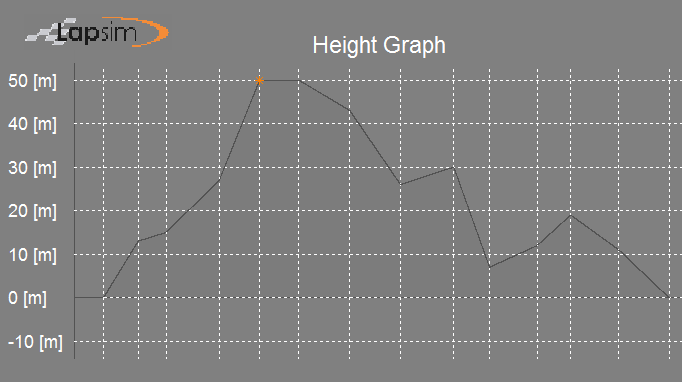

Figure of the LapSim GUI showing the track elevation versus track distance

In the height menu one adds specific height points to the track layout.

Height differences will lead to additional longitudinal resistance.

The change in elevation does not lead to any change in vertical load on the vehicle like banking in combination does.

By clicking in either figure of the GUI

Printscreen of the 3D track map in the height menu of LapSim

There are three ways of selecting a height point: by clicking on a point in the 3D main graph, click close to the point you want to select in the height graph, or select it in the listbox with the overview of the height points.

Once the point is selected, the edit boxes will be updated.

Specify in detail

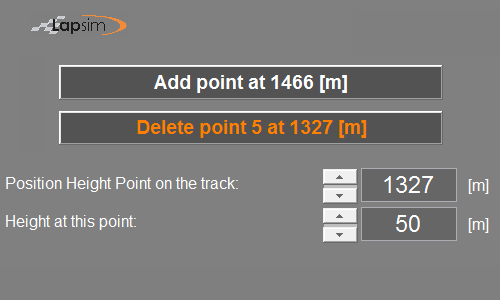

Printscreen of the LapSim GUI showing the two button to add or delete a height point

If you have selected a point, LapSim will show you a button to add an addition point at a distance half between the current point and the next.

LapSim will also show you a button to delete the selected point.

Helpful for selecting an height point

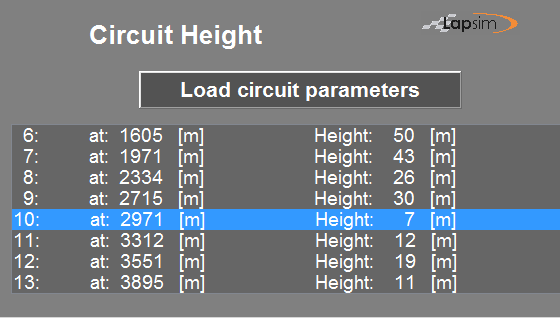

Printscreen of the LapSim GUI showing a listbox with all the height points listed

LapSim shows a listbox with all the height points and their specific data.

This listbox is continuously updated.
